Dependency Injection

In Python

(using Aglyph framework)

Praveen Shirali

Test Architect, RiptideIO

BangPypers MeetUp - December 17th 2016, Bangalore, India.

The OOP way: Part 1

A class forms the basic building block
Each class has a single responsibility
The class exposes an interface

The OOP way: Part 2

Then, there's a class with some higher-level behaviour
This class depends on instances of other lower-level classes
It encapsulates the behavior of lower-level classes.
It has its own responsibility, and its own interface.
Repeat --> At the highest level, you have your application.

A tree of dependencies -- the real world


Car
 |
 |----\ Exterior
 |       |-- Body
 |       |-- Wheels
 |       |...
 |
 |----\ Interior
 |       |-- Dashboard
 |           |-- Steering Assembly
 |       |...
 |
 |----\ EngineBay
 |       |-- Engine
 |       |...
 |
 |----\ Some other components...
 ...

A tree of dependencies -- software


SomeOOPApplication
       |
       |----\ Frontend
       |       |-- Frontend Dependency 1
       |       |-- Frontend Dependency 2
       |       |...
       |
       |----\ Server
       |       |-- Server Dependency 1
       |           |-- It's dependency ...
       |       |...
       |
       |----\ Database
       |       |-- DB Dependency 1
       |       |...
       |
       |----\ Some other components...
       ...

So, lets build an app...


from app.frontend import Frontend
from app.server import Server
from app.database import Database

class RockSolidApplication(object):

	def __init__(self):
		self.frontend = FrontEnd()
		self.server = Server()
		self.database = Database()

	def run(self):
	    ...
    ...

if __name__ == "__main__":
	app = RockSolidApplication()
	app.run()

But, what's wrong with it?


from app.frontend import Frontend
from app.server import Server
from app.database import Database

class RockSolidApplication(object):   <-- Can't reuse application for something else

	def __init__(self):
		self.frontend = FrontEnd()    <-- Dependencies are built from within
		self.server = Server()        <-- Can't introduce other/better deps
		self.database = Database()    <-- Bring your own deps. Hard to share.

	def run(self):
	    ...
    ...

if __name__ == "__main__":
	app = RockSolidApplication()      <-- Rock solid. Will this float on water?
	app.run()

Dependency Injection

The process of building dependencies separately and

injecting/assembling them into a higher-level product

Think -- assembly line (automobiles)

A (slightly) better approach


from app.frontend import Frontend
from app.server import Server
from app.database import Database

class RockSolidApplication(object):

	def __init__(self, frontend, server, database):
		self.frontend = frontend
		self.server = server
		self.backend = database

	def run(self):
	    ...
    ...

if __name__ == "__main__":
	app = RockSolidApplication(
		frontend=FrontEnd(),
		server=Server(),
		database=Database()
	)
	app.run()

A (slightly) better approach -- How?


from app.frontend import PrettierFrontend
from app.server import BetterServer
from app.database import FasterDatabase

class RockSolidApplication(object):

	def __init__(self, frontend, server, database):
		self.frontend = frontend
		self.server = server
		self.backend = database

	def run(self):
	    ...
    ...

if __name__ == "__main__":
	app = RockSolidApplication(
		frontend=PrettierFrontEnd(),    <-- replace with better components
		server=BetterServer(),          <-- or replace them with test doubles
		database=FasterDatabase()       <-- mocks/stubs/etc for testing
	)
	app.run()

A (slightly) better approach -- How?


from app.frontend import PrettierFrontend
from app.server import BetterServer
from app.database import FasterDatabase
from app.base import BaseApplication

class AirborneApplication(BaseApplication):    <-- this can fly!
    ...

class BuoyantApplication(BaseApplication):     <-- this floats on water
    ...

class RockSolidApplication(BaseApplication):   <-- this doesnt
    ...

if __name__ == "__main__":
	app = BuoyantApplication(
		frontend=PrettierFrontEnd(mermaids=True),
		server=BetterServer(food="unlimited", drinks="bottomless"),
		database=FasterDatabase(i_haz_nos=True)
	)
	app.run()

BUT

There is always a but ...

I still have to:

Know dependencies before hand and instantiate them.
Maintain order. Least dependent go first, and the rest follow.
Multiple places to update for one change. Hard to track.
Handle, track, log errors. Much pain.

Inversion of Control (IoC)

Empower a 3rd party to do something for you.

Request that 3rd party to assemble what you want.

Think -- Restaurant (with service) = DI using IoC

Example: The south-indian self-service fast-food restaurant situation..


from darshini.kitchen.steamcooker import Idly
from darshini.kitchen.wetgrinder import Chutney
from darshini.kitchen.largebucket import Sambar

from darshini.self_service.counter import Plate, Spoon, Fork, Bowl

from bangalore.citizen import Me
from datetime import datetime

if __name__ == "__main__":

    one_plate_idly = Plate()
    one_plate_idly.add(Spoon(), Fork())
    one_plate_idly.add(Idly(), Idly())
    one_plate_idly.add(Bowl(Sambar()))
    one_plate_idly.add(Bowl(Chutney()))

    me = Me() # singleton
    me.eat(one_plate_idly, at=datetime.now())

So, I walk into the service wing, and..


from darshini.service_wing import get_waiter
from darshini.service_wing import Menu

from bangalore.citizen import Me
from datetime import datetime

if __name__ == "__main__":

    me = Me()               # singleton
    waiter = get_waiter()   # returns a waiter who is available
    menu = Menu()

    me.see(menu.page1)
    idly_plate = me.say(menu.page1.idly_plate, to=waiter)  # blocking call
    me.eat(idly_plate)
    assert me.status == "Happy!"

Deepdive -- Actors

Client That's me -- the customer
Assembler That's the waiter, chef, etc
Context Menu+Recipie book
- Component Menu<->Recipie mapping
- Class/Class.factory Recipie
Service Name of the item on the menu - Example:`Idly - Plate`

Workflow - Restaurant:

I look at the menu. Ask waiter to get me an item on the menu.
Waiter goes to kitchen. Chef prepares it. Waiter brings it. I eat it.
I didn't have to tell the waiter: 1 plate idly = 2 Idly() + 1 Sambar() + 1 Chutney()
All changes make it to the Menu+Recipie book. All customers and staff are on the same page w.r.t changes.

Workflow - Application:

A context-file with component-ids mapping to classes is loaded and assembled into a context.
Client requests a `service` from the Assembler/Context
Assembler/Context/Dispatcher goes through the context, resolves dependencies, inits everything in the correct order.
Client doesn't need care about dependencies. Client gets the requested service and uses it.

Python DI+IoC Frameworks

Aglyph http://aglyph.readthedocs.io/en/latest/
SpringPython http://springpython.webfactional.com/
.. probably many more ..

Aglyph Example: XML Context

Aglyph Example: Code


from aglyph.context import XMLContext
from aglyph.asssembler import Assembler

if __name__ == "__main__":
	context = XMLContext("app-context.xml")
	assembler = Assembler(context)

	# this will build app.core.Application and inject all 3 dependencies
	app = assembler.assemble("my-app")

Aglyph Support

Supports Python 2 and Python 3. Well tested. Excellent Documentation
Supports both XML config based contexts as well as python API
Supports Prototype (default), Singleton, Borg, Weakref for all classes.
Can configure references as well as python native datatypes as args, kwargs.
... and lots of other features.

Advantages

A single place from where you can wire your app and its components
No need to worry about dependency order during configuration. The framework takes care of it during runtime.
Lazy initialization. Dependencies are assembled as required, only when required.
Checks against cycling dependencies.
Singleton, Borg etc needs not be implemented by a class. Any class can be made to behave like a Singleton etc.
... and lots of other features.

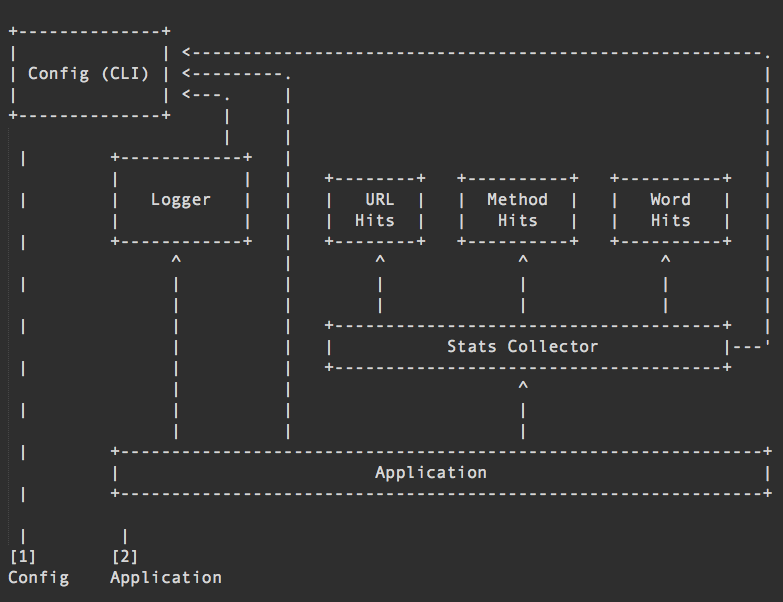

Demo

https://github.com/pshirali/stubby

Some essential reading

Dependency Injection by Martin Fowler 2004 http://martinfowler.com/articles/injection.html
Python Dependency Injection by Alex Martelli Google, 2008 http://www.aleax.it/yt_pydi.pdf
